Sensor array wiring diagrams

As the Chameleon Soil Water Sensor designs have evolved, we have implemented three different cabling systems.

Here are the wiring diagrams for each system.

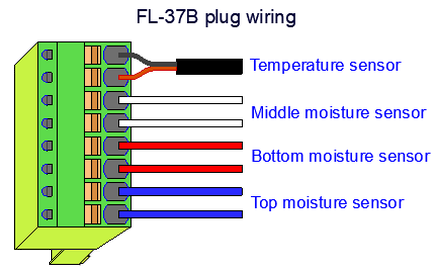

FL37 adapter

This is the latest cabling system. It has the benefit of spring-loaded push-in connectors instead of screw terminals.

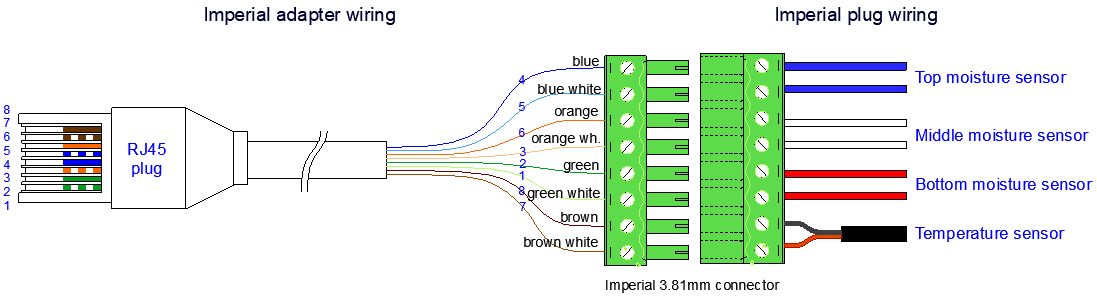

Imperial adapter

This cabling system has primarily been used in Africa and Pakistan where the sensor arrays are left unplugged in the field.

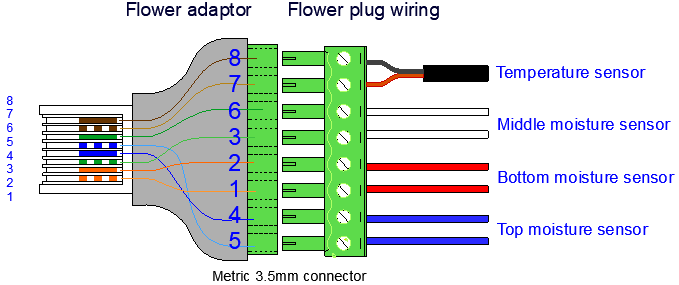

Flower adapter

This cabling system has been used in countries where the Wi-Fi Reader is mostly left permanently installed in the field.
